High-speed roll-up doors of SpeedRoll SDF series are designed for isolation and preservation of controlled temperature in commercial and industrial premises, warehouses, and any other applications where hygiene standards are exceptional.
Application:
Warehouse areas. Premises with high hygiene standards
Design
Stainless steel
Door frame/curtain colour
ASIS 304 stainless steel door frame
RAL 5002 Ultramarine blue
Equipment
Tracks and track covers made of AISI304 stainless steel
Zinc-caoated shaft, diameter 90/130 mm
Guide rails — extruded polyethylene
Door curtain — nontransparent reinforced PVC with density of 900–1 200 g/sqm
Control unit — painted steel body 300 х 400 х 150 mm; protection class — IP54; with frequency converter
Photocells are installed at 500 mm above the floor level. Anti-jamming sensor — at the top of side track to detect incorrect unwinding of the curtain
Shaft made of AISI304 stainless steel
Control unit body made of AISI304 stainless steel
Heating of the drive and tracks
If the sensitive lower edge touches an obstruction when the door is closing, then a signal is transmitted to the control unit to open the door. In case of power outage the door opens automaticaly with a counterweight
Technical description
Size Table
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Opening width, mm
from 1 700 to 3 800
Opening height, mm
from 1 700 to 4 000
Sideroom clearance, mm
from 175 to 400
- Electric drive
- Shaft
- Shaft box
- Door curtain
- Transparent insert (window/panel)
- Vertical track
- Guide
- Curtain bottom edge
- Photoelectric cell
- Control unit

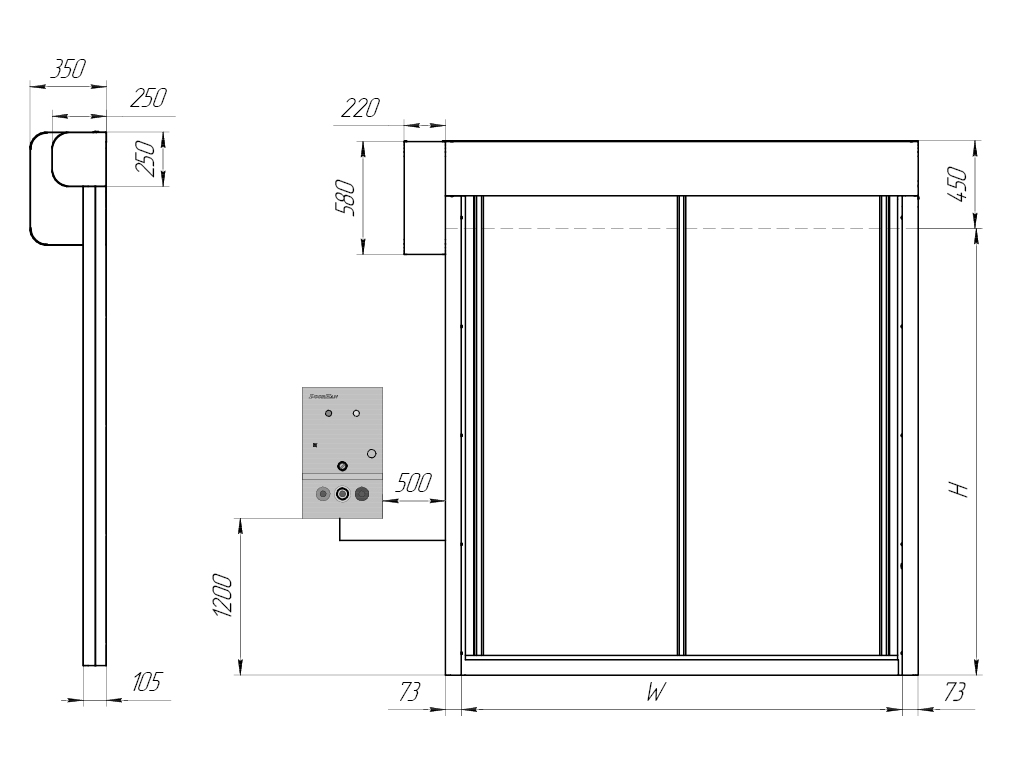

General view of a door with side drive (drive on the left/drive on the right)
| Symbol, parameter name |
Calculation formula |
| H, mm Opening height |
from 1 700 to 3 800 |
| B, mm Opening width |
from 1 700 to 4 000 |
| Parameter |
Value |
Notes |
|
Wind load, Pa |
CLASS1 |
for doors up to 4 000 mm wide |
|
Opening speed, m/s |
2,0 |
for doors up to 3 000 х 3 000 mm |
|
Opening speed, m/s |
1,8 |
for doors up to 4 000 х 4 000 mm |
|
Closing speed, m/s |
0,8 |
|
|
Operating temperature range, °С |
from -15 to +70 |
if the drive is installed inside the premise |
|
Operating temperature range, °С |
from -5 to +70 |
if the drive is installed outside the premise |
|
Operating temperature range, °С |
from -35 to +70 |
with the heating system for tracks and drive |
|
Power, W |
1 500 |
|
|
IP protection class |
IP54 |
end positions are monitored by the encoder |
|
Supply voltage, V |
220 V / 50 Hz |
single-phase |
|
Supply voltage, V |
380 V / 50 Hz |
triphase |
|
Number of cycles |
1 500 000 |
depends on operating conditions |
Carry out regular maintenance of high-speed doors to provide their smooth and safe operation.
Manual closing and opening of the doors is carried out with a hand crank.
Don’t strike the door curtain or obstruct its movement.
Keep the rails clean.
Never stay or cross an opening under a moving door curtain as it may cause serious injury.
Keep the door opening clear of any objects during door closing or opening.
| Packing in wood |
Packaging features |
| Contents |
wooden crate, door parts are protected with cardboard and fixed with clamps |
| Length, mm |
depends on door parts length |
| Width, mm |
from 640 to 705 |
| Height, mm |
from 480 to 730 |
Additional Information print
All the DoorHan products are loaded with hydraulic crane or fork-lift truck with 2 m long forks. Customer or installer is recommended to use similar equipment. Truck fork should go under the wooden pallet, provided by the customer, and protrude from its other side. When lifting with crane or other lifting equipment use slings of corresponding lifting capacity.
Installation

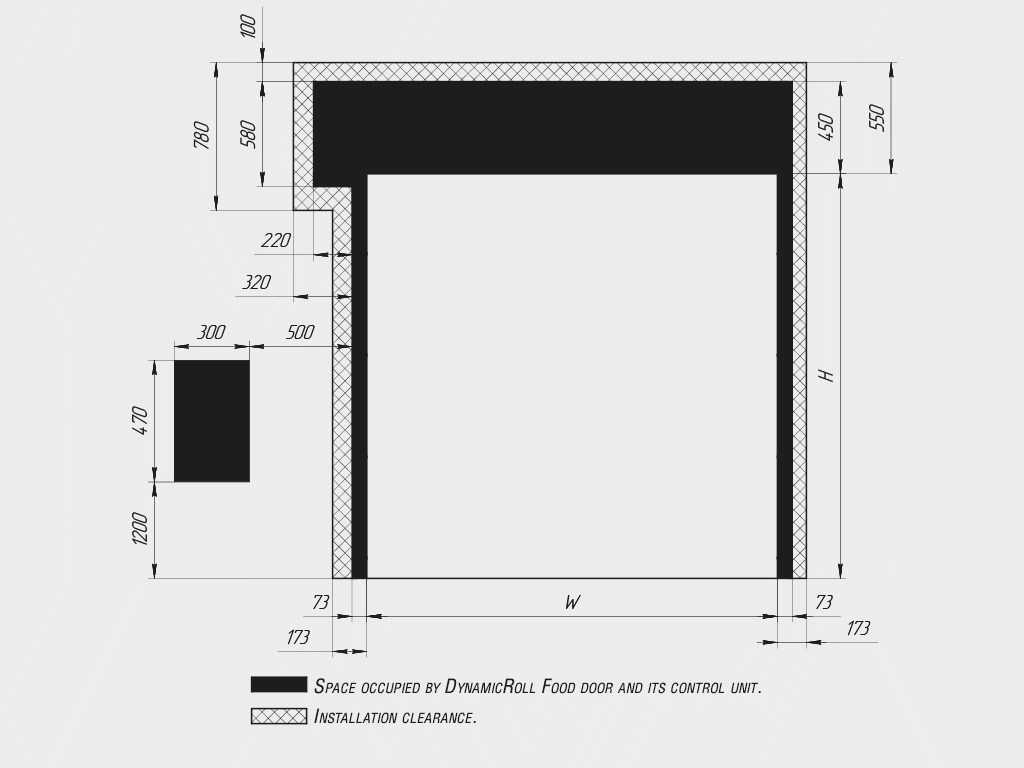

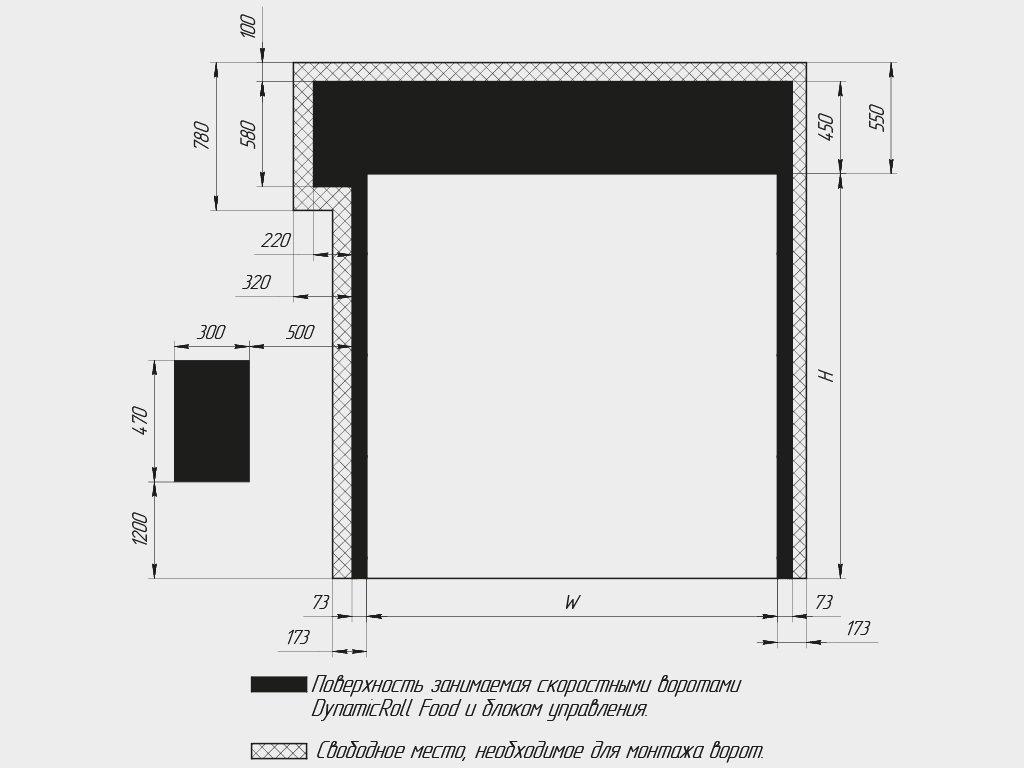

Mounting Options
Checking Dimensional Details
- All the necessary measurements are taken inside the premises. Every dimension should be taken at least in three points:
- H — opening height (distance from floor to opening top);
- W – opening width (distance between left and right side of the opening).
- When measuring Н and W the largest figure is taken for final dimension.
Documentation
Manuals
Technical Data and Certificates
Drawings
High-speed roll-up door of SpeedRoll SDF series (for food industry)
Certificate of Conformity (high-speed roll-up door)
Technical data for high-speed roll-up door
High-speed roll-up door of SpeedRoll SDF series (side drive)
Installation instructions of SpeedRoll SDF door
Warranty print
DoorHan warrants the high-speed doors to operate properly for a period of 1 year from purchase date for retail orders, and for a period of 2 years from purchase date for dealer orders.
New Products
DoorHan drive (220/380 V)
Design
Stainless steel
ASIS 304 stainless steel door frame
Door frame/curtain colour
RAL 5002 Ultramarine blue
Equipment
Standard
Tracks and track covers made of AISI304 stainless steel
Zinc-caoated shaft, diameter 90/130 mm
Guide rails — extruded polyethylene
Door curtain — nontransparent reinforced PVC with density of 900–1 200 g/sqm
Control unit — painted steel body 300 х 400 х 150 mm; protection class — IP54; with frequency converter
Photocells are installed at 500 mm above the floor level. Anti-jamming sensor — at the top of side track to detect incorrect unwinding of the curtain
Optional
Shaft made of AISI304 stainless steel
Control unit body made of AISI304 stainless steel
Heating of the drive and tracks
If the sensitive lower edge touches an obstruction when the door is closing, then a signal is transmitted to the control unit to open the door. In case of power outage the door opens automaticaly with a counterweight
Technical description
Size Table
Opening width, mm
from 1 700 to 3 800
Opening height, mm
from 1 700 to 4 000
Sideroom clearance, mm
from 175 to 400
Construction
- Electric drive
- Shaft
- Shaft box
- Door curtain
- Transparent insert (window/panel)
- Vertical track
- Guide
- Curtain bottom edge
- Photoelectric cell
- Control unit
Standard Construction
General view of a door with side drive (drive on the left/drive on the right)
| Symbol, parameter name |
Calculation formula |
| H, mm Opening height |
from 1 700 to 3 800 |
| B, mm Opening width |
from 1 700 to 4 000 |
Specifications
| Parameter |
Value |
Notes |
|
Wind load, Pa |
CLASS1 |
for doors up to 4 000 mm wide |
|
Opening speed, m/s |
2,0 |
for doors up to 3 000 х 3 000 mm |
|
Opening speed, m/s |
1,8 |
for doors up to 4 000 х 4 000 mm |
|
Closing speed, m/s |
0,8 |
|
|
Operating temperature range, °С |
from -15 to +70 |
if the drive is installed inside the premise |
|
Operating temperature range, °С |
from -5 to +70 |
if the drive is installed outside the premise |
|
Operating temperature range, °С |
from -35 to +70 |
with the heating system for tracks and drive |
|
Power, W |
1 500 |
|
|
IP protection class |
IP54 |
end positions are monitored by the encoder |
|
Supply voltage, V |
220 V / 50 Hz |
single-phase |
|
Supply voltage, V |
380 V / 50 Hz |
triphase |
|
Number of cycles |
1 500 000 |
depends on operating conditions |
Operating Conditions
Carry out regular maintenance of high-speed doors to provide their smooth and safe operation.
Manual closing and opening of the doors is carried out with a hand crank.
Don’t strike the door curtain or obstruct its movement.
Keep the rails clean.
Never stay or cross an opening under a moving door curtain as it may cause serious injury.
Keep the door opening clear of any objects during door closing or opening.
Packaging
| Packing in wood |
Packaging features |
| Contents |
wooden crate, door parts are protected with cardboard and fixed with clamps |
| Length, mm |
depends on door parts length |
| Width, mm |
from 640 to 705 |
| Height, mm |
from 480 to 730 |
Additional Information
All the DoorHan products are loaded with hydraulic crane or fork-lift truck with 2 m long forks. Customer or installer is recommended to use similar equipment. Truck fork should go under the wooden pallet, provided by the customer, and protrude from its other side. When lifting with crane or other lifting equipment use slings of corresponding lifting capacity.
Installation
Checking Dimensional Details
- All the necessary measurements are taken inside the premises. Every dimension should be taken at least in three points:
- H — opening height (distance from floor to opening top);
- W – opening width (distance between left and right side of the opening).
- When measuring Н and W the largest figure is taken for final dimension.
Warranty
DoorHan warrants the high-speed doors to operate properly for a period of 1 year from purchase date for retail orders, and for a period of 2 years from purchase date for dealer orders.
Documentation
Manuals
High-speed roll-up door of SpeedRoll SDF series (for food industry)
Technical Data and Certificates
Certificate of Conformity (high-speed roll-up door)
Technical data for high-speed roll-up door
Drawings
High-speed roll-up door of SpeedRoll SDF series (side drive)
Installation instructions of SpeedRoll SDF door
Checkout
Managers of the company will answer all
questions by phone:
